GwliUni 50 Pcs FC to FC Coupler Fiber Optic Adapter, Simplex Connecting Converter with Panel Mounting Wing

【Product Description】 -The FC to FC Coupler is a small device designed to mount in standard rectangular cut out style panels, and It can be used to link Optical Fiber cables or fiber connectors between two Optical Fiber Lines. -The FC to FC Coupler features a dust cap to protect the fiber installation from debris and other contaminants that can ensure the optimal functionality. 【Coupler Specifications】 Product Type: Simplex FC-FC with screw mounting wing Fiber Type: Single mode UPC Coupler Type: Female to Female Insertion Loss: ≤0.2dB High Interchangeability: ≤0.25db High Repeatability: ≤0.15db Operating Temperature: -20~70℃

• 【Main Parameter】Coupler interface:Simplex FC-FC with screw mounting wing, End-face type: single-mode UPC, Operating temperature: -20~70℃.

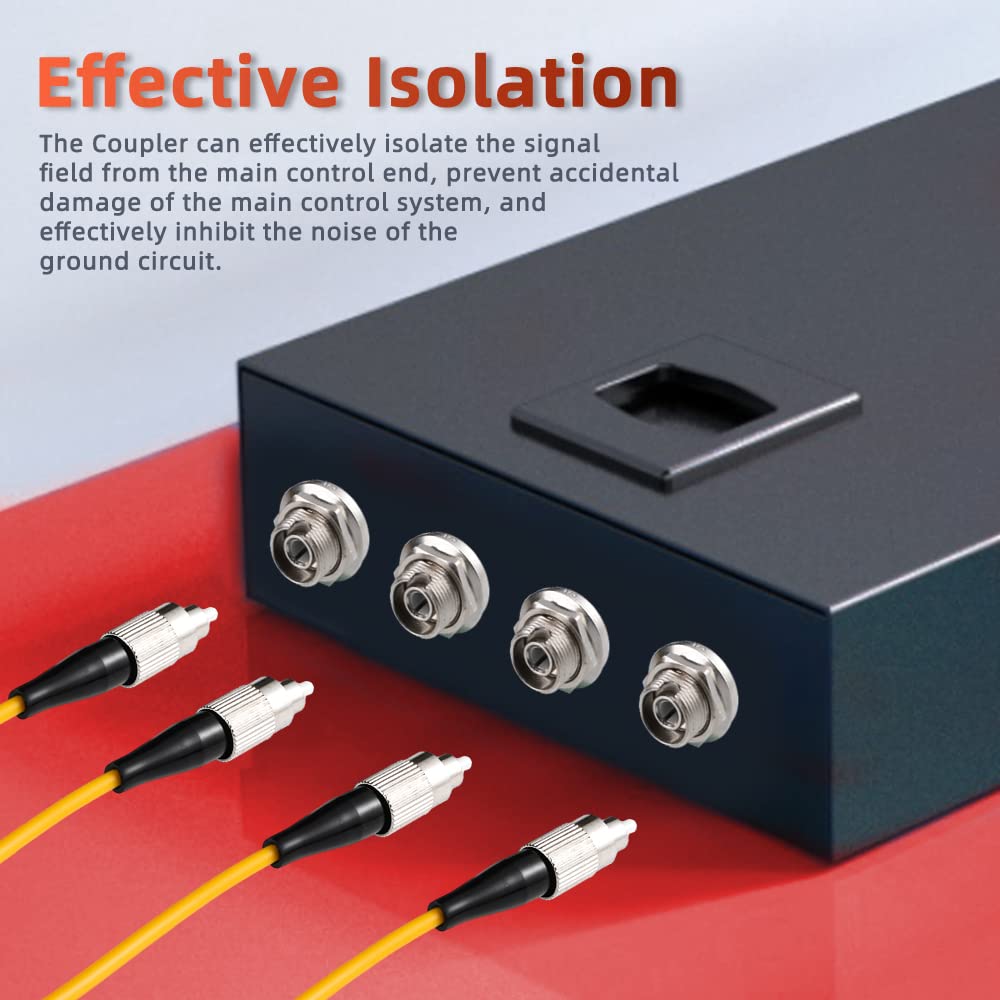

• 【Effective Isolation】The Coupler can effectively isolate the signal field from the main control end, prevent accidental damage of the main control system, and effectively inhibit the noise of the ground circuit.
• 【High Reliability】The Coupler internal adopt high-precision zirconium ceramiccore (low insertion loss ≤0.2db, high echo loss≥25db), to ensure maximum connection between the optical fiber jumpers.
• 【High Interchangeability】The Coupler has good interchangeability (≤0.25db) and repeatability (≤0.15db), which can be plugged more than 1000 times.
• 【Wide Application】The Coupler can widely used in Server Rack, Patch Panel, Optical Distribution Frame (ODF), CATV, optical fiber broadband access network, etc.
